VT2212G23A020

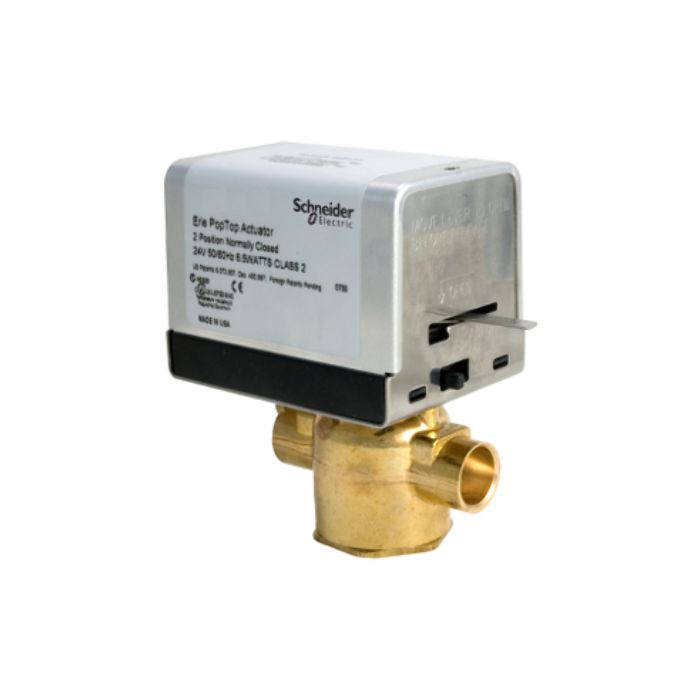

Zone Valve Assembly, 2 Way, 1/2 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Sweat, 2.5 Cv, Brass Trim, Erie PopTop Actuator, Spring Return Normally Open, 24 VAC, 2 Position, On/Off Control Signal, General Close-Off.
Features
One-Handed Engagement Or Removal Of The Motorized Actuator To The Valve Body
Valve Actuator Can Be Easily Attached After The Valve Body Has Been Installed Into The System
Mounts Quickly And Easily Without The Need Of Linkages Or Calibration
UL Listed Actuator
Technical Details
Service
Glycol 25 To 50%, Steam And Water
Flow Characteristic
Quick Open
Operating Conditions
32 F To 200 F (0 C To 93 C)
Power Consumption
6.5 Watts, 7.5 VA
Operating Conditions
32 F To 200 F (Fluid) At 104 F
Electrical Connection
18 in. Standard Wire Leads
Housing
NEMA 1, IP10
Auxiliary Switch
1 x SPDT
