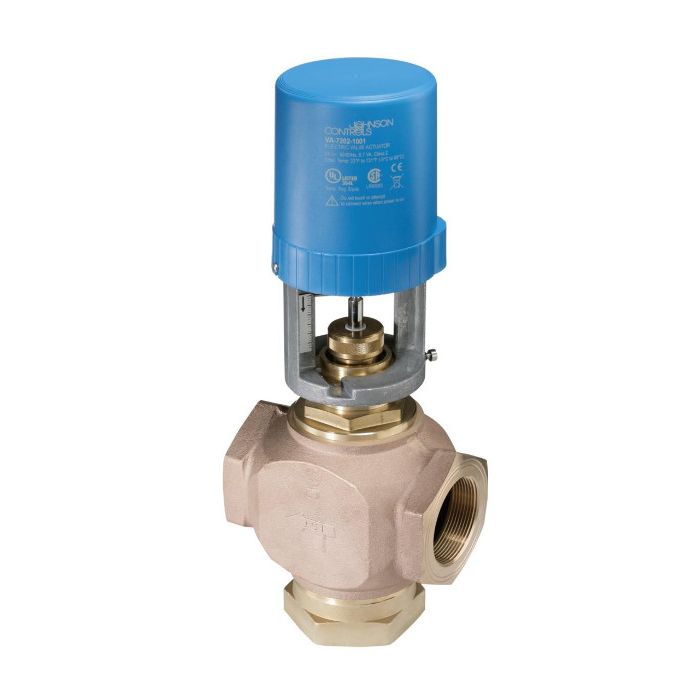

VG7844ST+7203G
Globe Valve Assembly, 3 Way 2 in.
by
NPT, 46.2 Cv, Bronze Body, Stainless Steel Stem And Seat, Direct Coupled Actuator, 180 in-lb Non-Spring Return, 24 VAC, On/Off, Floating With Feedback.
Features
Packing: Spring-Loaded PTFE And Elastomer V-Rings
Magnetic Clutch Protects Gearing, Ensures Tight Closeoff
Valve Body Static Pressure Rating: ANSI Class 250
Factory Or Field Assembly
Technical Details
Service
Hot Water, Chilled Water, 50/50 Glycol Solutions, And Steam For HVAC Systems
Operating Conditions
35 F To 338 F (2 C To 170 C)
Flow Characteristic
Linear
Closeoff Pressure
28/29 psig
Power Consumption
6.7 VA
Actuator Operating Conditions
23 F To 131 F (-5 C To 55 C)
Electrical Connection
Screw Terminals
Housing
NEMA 2, IP42
