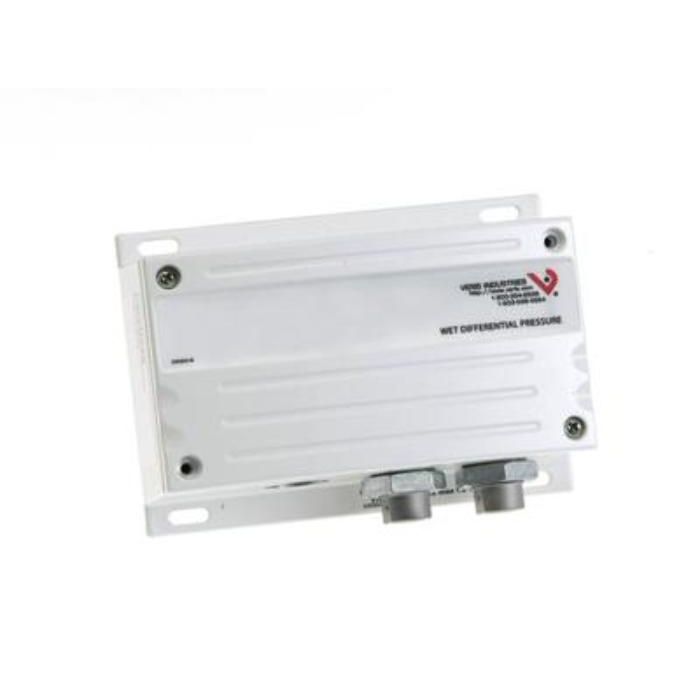

PWXX05S

Wet Differential Pressure Transducer

done_outline8888 in stock

addShow Locations removeHide Locations

12 To 30 VDC Or 24 VAC Input, 4 To 20 mA, 0 To 5 VDC Or 0 To 10 VDC Output, 0 To 250 psig Measurement Range.

Features

The Jumper-Selectable Output Switch For Normal (4 To 20 mA) Or Reverse (20 To 4 mA) Operation Provides Application Flexibility

Media Compatible With 17 To 4 PH Stainless Steel

Maximum 2X Full Scale Range Proof Pressure

Maximum 5X Full Scale Range Burst Pressure

Rugged, Die-Cast Enclosure Provides Neman 4 Sealing

Switch-Selectable Pressure Ranges, Fewer Models To Order And Stock

Pushbutton And Remote Zero Adjustment, Maintain Accuracy And Reduce Callbacks With Automatic Zero Calibration

Jumper-Controlled Electronic Surge Dampening For High Stability

Electronic, 5 S Averaging Surge Damping

Overrides Output To Full Scale (20 Ma, 5 V, 10 V) Test Mode

Pushbutton Auto-Zero And Digital Input (2-Position Terminal Block) Zero Adjust

Dual-Color Led: Green = Normal, Green Blinking = Low Greater Than High, Red = Over Range, Red Blinking = Overpressure Status Indication
