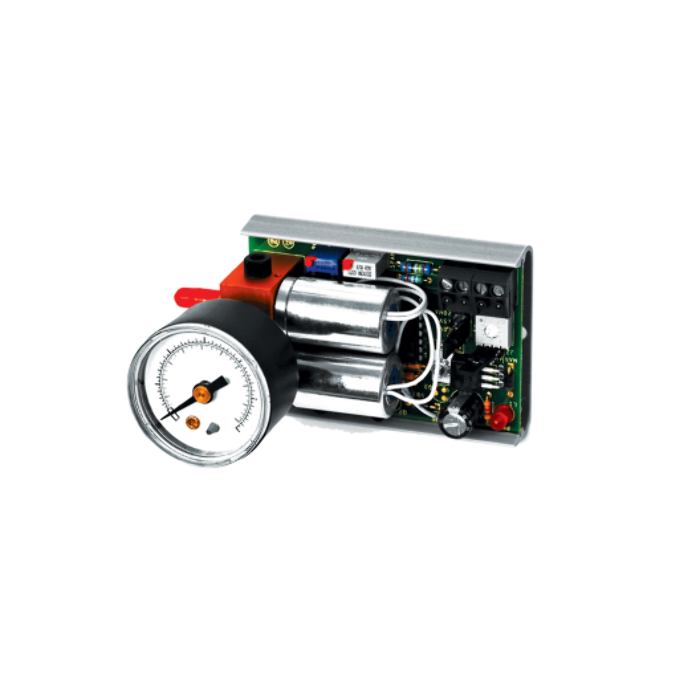

PXP7.3
Electric To Pneumatic Transducer
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Analog To Pneumatic Output, 1 To 5, 2 To 10, 3 To 15 VDC Or 4 To 20 mA Input Signal Source, 0 To 15 psig Output Pressure Range, 0.007 in. Bleed Orifice.
Features
Will Automatically Modulate Its Control Valve(s) To Regulate The Branch Line Pressure To The Selected Set Point As Determined By The Input Signal
A 0 To 5 VDC Feedback Signal Indicating The Resultant Branch Line Pressure Is Also Provided
Three Way Mixing Valve Control
Pilot Positioner Control
Compressor Staging
Chiller Loading
