CDIY-450X-20
ECY-450-C0
by
done_outline8888 in stock
addShow Locations
removeHide Locations

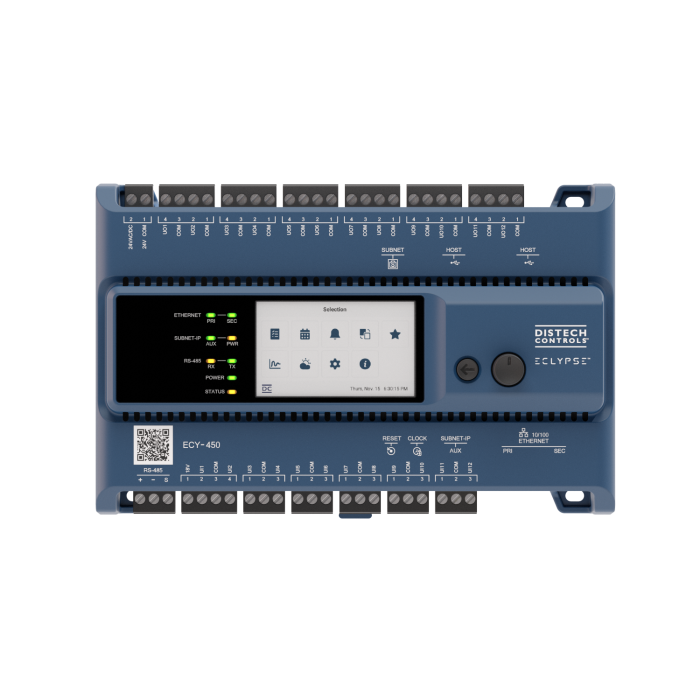

Connected Equipment Controller with ECLYPSE Building Intelligence software - Embedded LCD Display, 12 UI and 12 UO onboard IO. Max connectivity 50 connections. No connection included. Includes two years of Atrius Facilities - Organize.
Features
Can be mounted vertically or horizontally; perfect for panel retrofits or applications when limited horizontal space is available
Supports BACnet MS/TP, BACnet/SC, BACnet/IP, MQTT, Modbus RTU, Modbus TCP, and Mbus
Connectivity packs enable remote devices to be added to a connector in ECLYPSE Building Intelligence to provide flexibility and expandability to customize your project needs
Readily supports Atrius Facilities that simplifies installation and maintenance of systems and increases the efficiency of building operations.
Technical Details
Power
25 VAC
Operating Conditions
-40 F To 122 F (-20 C To 50 C)
Approvals
"This Device Complies With FCC Rules Part 15, Subpart B, Class B, ICES-003, UL916, EN61000-6-3, EN6100-6-1"
Programming Software
EC-gfxProgram
