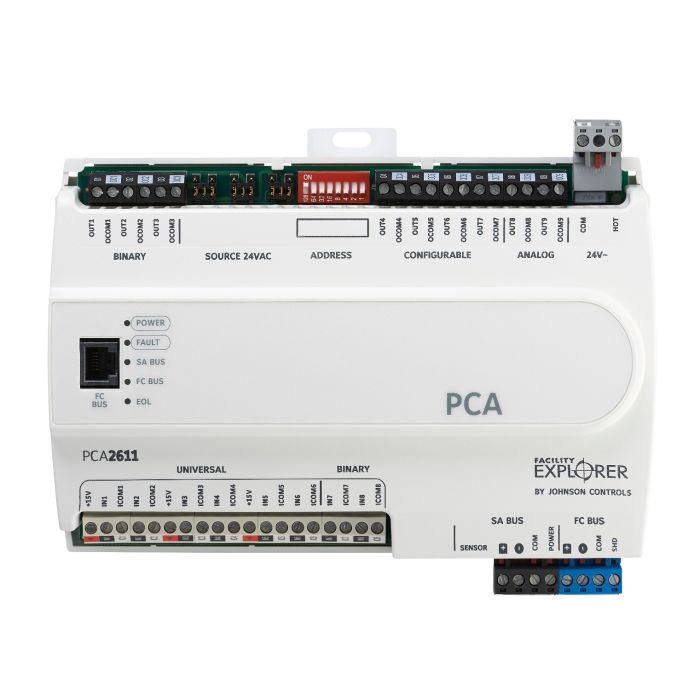

FX-PCA2611-0
FX-PCA Controller, 15 IO
by
done_outline8888 in stock
addShow Locations
removeHide Locations
General Purpose, Programmable, 6 UI 2 BI 3 BO 4 CO 2 AO, BACnet MS/TP or N2, 1 RS-485.
Features
Alarming, Embedded Scheduling, Real Time Clock
ZigBee Wireless Field Controller (FC), Sensor, Actuator (SA) Bus Interface
Bluetooth Wireless Commissioning
Auto-Tuned Control Loops
BACnet Protocol With BTL Listing
Technical Details
Power
24 VAC
Environmental Ratings
0 To 50 C (32 To 122 F)
Approvals
UL Listed, File E107041, CCNPAZX, UL916, Energy Management Equipment, FCC Compliant to CFR47,Part 15, Subpart B, Class A. BACnet Testing Laboratories (BTL)Protocol Revision 7 Listed BACnet Advanced Application Controller (B-AAC).
Communication Network
BACnet MS/TP, N2
IO
15
Ports
RS-485, FC Bus Port, SA Bus Port
Controller Product Family
FX-PC
Type
Programmable
Power Voltage
VAC
Power Voltage Display
20 To 30 VAC
Application
General Purpose
Mounting
DIN Rail Mount, Surface Mount
