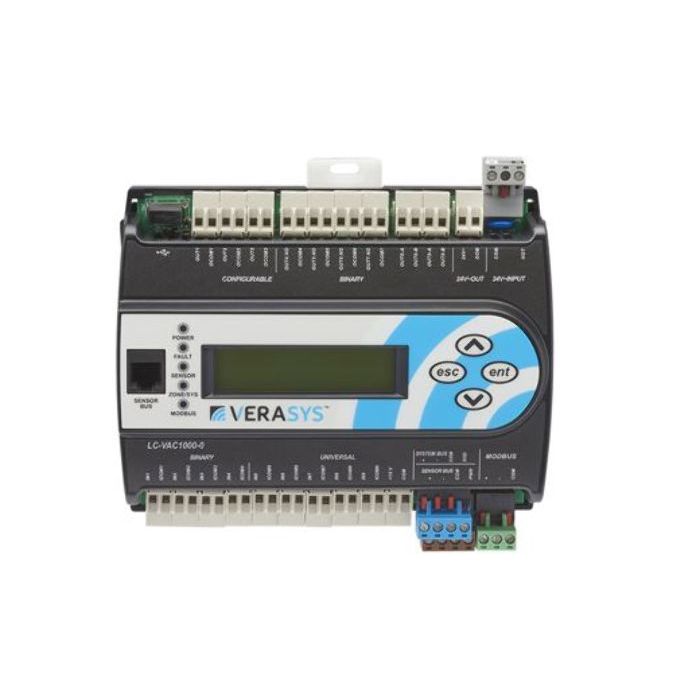

LC-VAC1001-0
Verasys Application Controller, 18 IO
by
done_outline8888 in stock
addShow Locations
removeHide Locations
24 VAC, 5 UI 4 BI 3 CO 4 BO Relays 2 BO Triacs, BACnet MS/TP, Modbus And N2 Through RS-485, With Lighting Controller Application Loaded, Includes LCD Display.
Features
Part Of The SMART Equipment Controller Family
Runs Pre-Engineered Applications And Provide The Inputs And Outputs Required To Monitor And Control A Wide Variety Of HVAC Equipment
Operate On An RS-485 BACnet MS/TP Bus As BACnet Advanced Application Controllers
The Controllers Integrate Into Johnson Controls And Third-Party BACnet Systems
Includes An Integral Real-Time Clock That Enables The Controllers To Monitor And Control Schedules, Calendars, And Trends
The Controller Can Operate For Extended Periods Of Time As Stand-Alone Controllers When They Are Disconnected From The System Network
Technical Details
Power Consumption
20 VA
Operating Conditions
-4 F To 158 F (-20 C To 70 C), 10 To 95% RH Non-Condensing; Pollution Degree 2
Approvals
cULus Listed, File E107041, CCN PAZX, UL 916, Energy Management Equipment FCC Compliant to CRF47, Part 15, Subpart B, Class A
