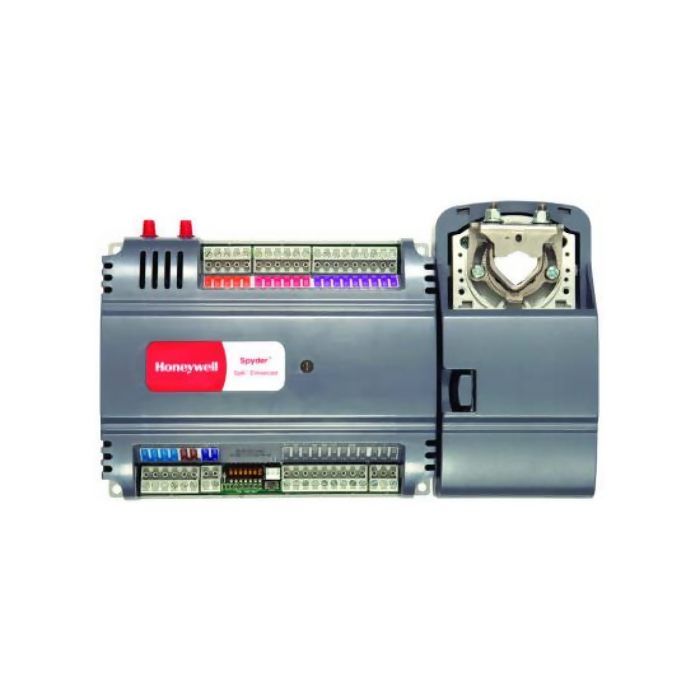

PVB6436AS/U
Spyder, 19 IO
by
done_outline8888 in stock
addShow Locations removeHide Locations
VAV, Programmable, 6 UI 4 DI 3 AO 6 DO, BACnet MS/TP, RS-485

Features

Built-in Actuator, Real Time Clock, Sylk Bus
EIA-485 Communications Network Capable of Baud Rates Between 96 and 1152 kbits/s
Both Controller Housing and Actuator are UL Plenum Rated
Sylk Bus for Use With Sylk-Enabled Sensors
Support for up to 40 Controllers Per BACnet MS/TP Segment (Under 30 is Recommended)
Function Block Engine, Which Allows the Application Designer to Program the Controller to Perform a Wide Variety of HVAC Applications
Built-In Zone Control Functions Include a Remote Wall Module Interface and a Scheduler
Microbridge Air Flow Sensor With Dual Integral Restrictor Design (PVB0000AS, PVB4022AS, PVB4024NS, PVB6436AS, and PVB6438NS)
Easy User Access to Air Flow Sensor Inputs
Actuator (PVB0000AS, PVB4022AS, and PVB6436AS) Mounts Directly Onto VAV Box Damper Shaft and Has up to 44 lb-in (5 Nm) Torque, 90- Degree Stroke, and 90 Second Timing at 60 Hz
All Wiring Connections are Made to Removable Terminal Blocks to Simplify Controller Installation and Replacement

Technical Details

Power
24 VAC With a Valid Range of 20 to 30 VAC
Operating Temperature
32 F to 122 F
Approval
UL/cUL (E87741) Listed Under UL916 (Standard for Open Energy Management Equipment) With Plenum Rating Meets FCC Part 15, Subpart B, Class B (Radiated Emissions) Requirements
Communication Network
BACnet MS/TP
IO
19
Ports
RS-485
Type
Programmable, Stand-alone
Power Voltage
VAC
Power Voltage Display
20 To 30 VAC
Mounting
Damper Shaft Mount
