VG1275CL+9A4AGA

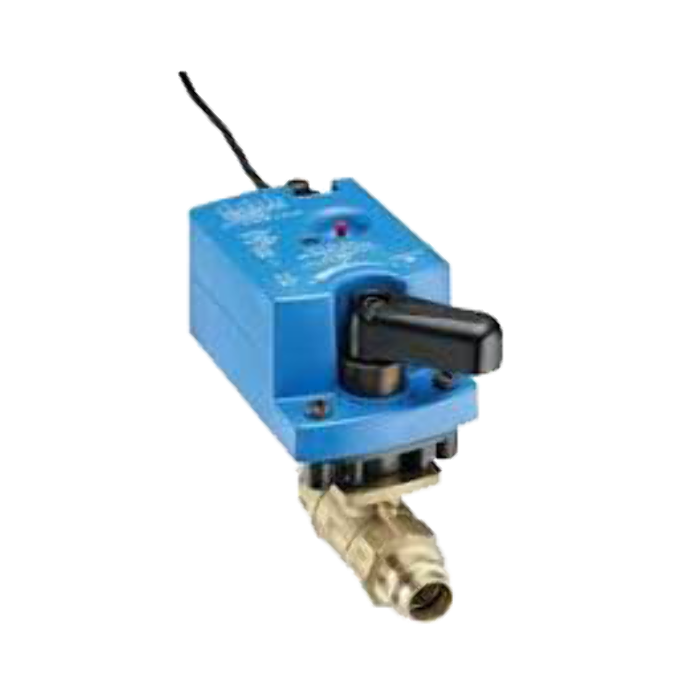

Ball Valve Assembly, 2 Way, 1 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Sweat, 7.4 Cv, Forged Brass Body, Chrome Plated Brass Ball And Nickel Plated Brass Blowout-Proof Stem, Direct Mount Electric Actuator, 35 lb-in. Non-Spring Return, 24 VAC, On/Off, Floating Without Timeout.
Features
Maintenance-Free Design, Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
500:1 Rangeability, Provides Accurate Control Under All Load Conditions
Technical Details
Service
Hot Water, Chilled Water, 50/50 Glycol Solution For HVAC Systems
Flow Characteristic
Equal Percentage
Operating Conditions
22F To 212 F (-30 C To 100 C)
Close-Off Pressure
200 psig
Power Consumption
2.3 VA
Operating Conditions
-4 F To 140 F (-20 C To 60 C)
Electrical Connection
48 in. Plenum Rated Cable
Housing
NEMA 1, IP40
