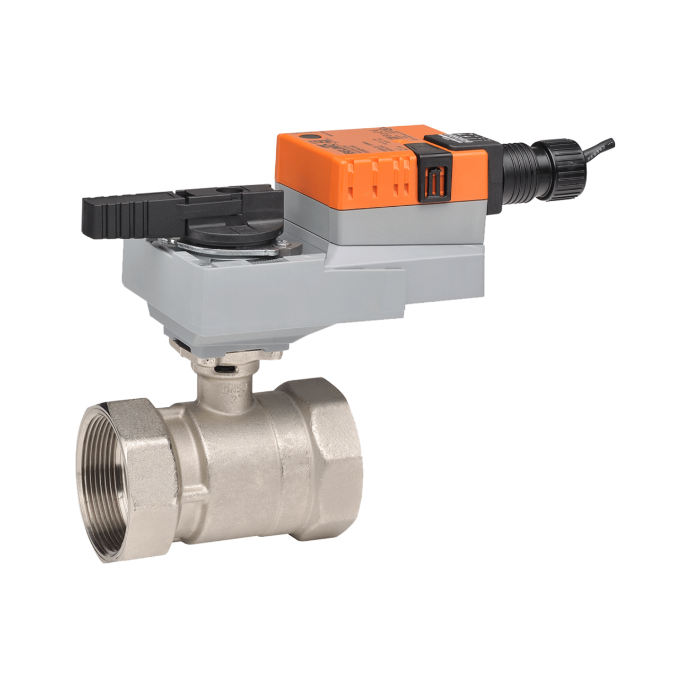

B207+LRB120-3
CCV Assembly 2 Way, 1/2 in. NPT, 0.3 Cv
by
done_outline8888 in stock
addShow Locations removeHide Locations
Characterized Control Valve, Forged Brass, Nickel Plated Brass Body, Stainless Steel Ball And Stem, Direct Coupled Actuator, 45 in-lb, On/Off, Floating Point, Non-Spring Return, 100 To 240 VAC.

Features

Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
Valve Is Suitable In Use In A Hydronic System With Variable Flow
Ball Valve Design Offers Self-Cleaning And Zero Leakage
Rated For Water Temperatures Up To 250 F
Maintenance Free-No Repacking Required After Being In Service For An Extended Period Of Time

Technical Details

Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Equal Percentage
Operating Conditions
0 F To 250 F (-18 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
2 W Running, 0.5 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
Housing
NEMA 2, IP42, UL Enclosure Type 2
