B209B+LF120 US

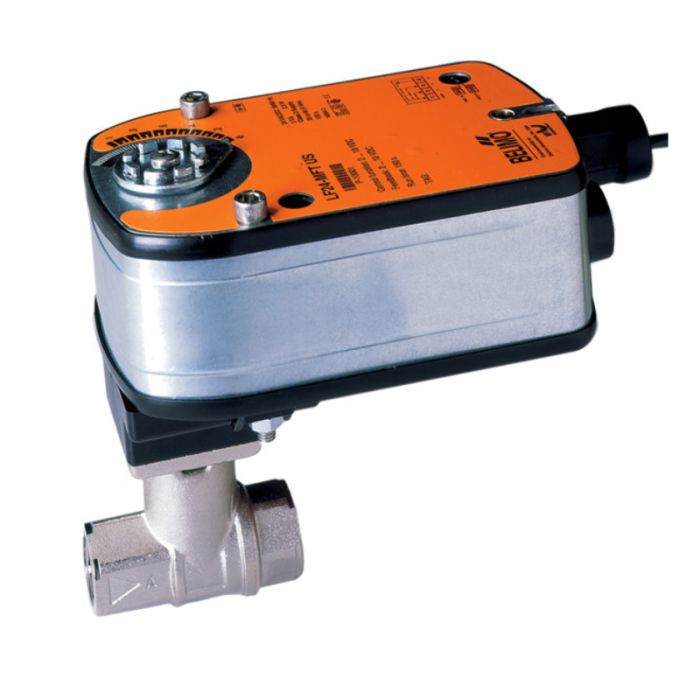

CCV Assembly 2 Way, 1/2 in. NPT, 0.8 Cv
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Characterized Control Valve, Forged Brass, Nickel Plated Brass Body, Chrome Plated Brass Ball, And Nickel Plated Brass Stem, Direct Coupled Actuator, 35 in-lb, On/Off, Spring Return Fail-Safe, 120 VAC.
Features
Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
Valve Is Suitable In Use In A Hydronic System With Variable Flow
Ball Valve Design Offers Self-Cleaning And Zero Leakage
Rated For Water Temperatures Up To 250 F
Maintenance Free-No Repacking Required After Being In Service For An Extended Period Of Time
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Equal Percentage
Operating Conditions
0 F To 250 F (-18 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
5.5 W Running, 3.5 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
Housing
NEMA 2, IP54
